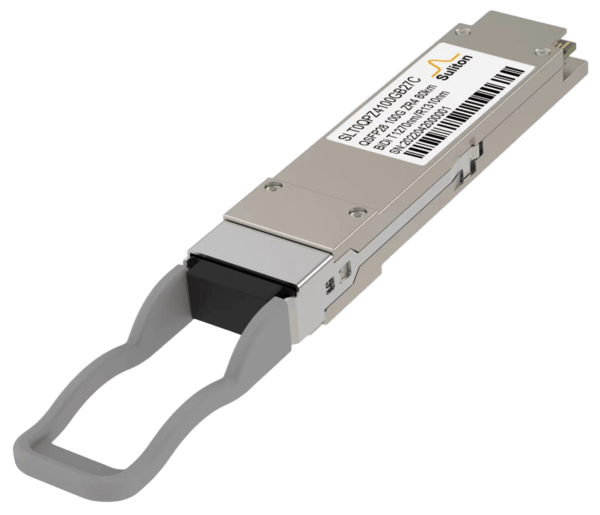

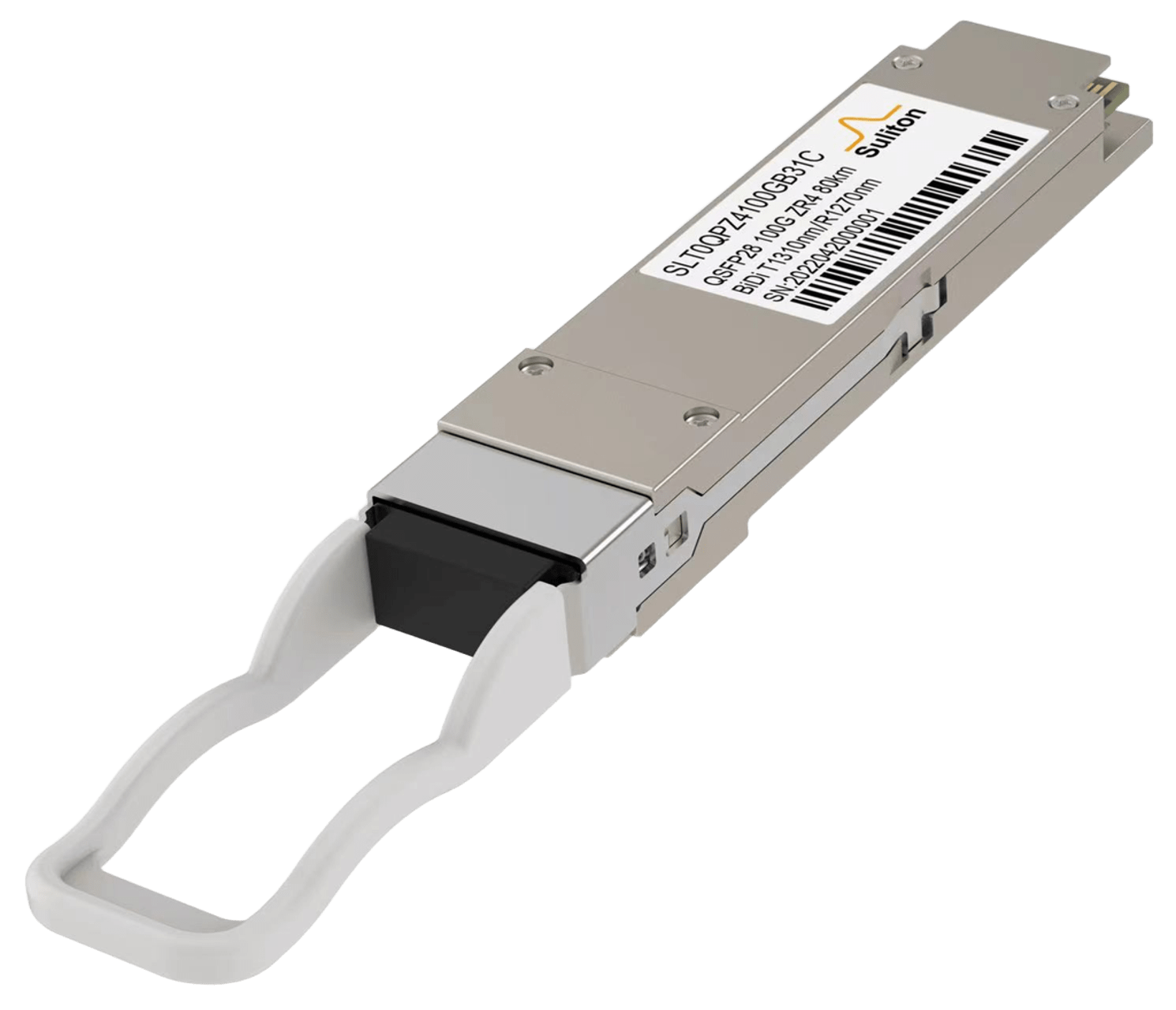

100Gb/s QSFP28 ZR4 BIDI 80km 1270/1310nm Optic Transceiver Module

Part No.SLT0QPZ4100GB31x/SLT0QPZ4100GB27x

This product is a 100Gbps transceiver module designed for optical communication applications compliant to 100GBASE-ZR4.

The module converts 4 input channels of 25Gb/s electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission.

Reversely on the receiver side, the module de-multiplexes a 100Gb/s optical input into 4 channels of LAN WDM optical signals and then converts them to 4 output channels of electrical data.

The central wavelengths of the 4 LAN WDM channels are 1295.56, 1300.05, 1304.58 and 1309.14 nm as members of the LAN WDM wavelength grid defined in IEEE 802.3ba.

The high performance cooled LAN WDM EML transmitters and high sensitivity PIN+SOA receivers provide superior performance for 100Gigabit Ethernet applications up to 80km links.

Advanatge of SULITON 100Gb/s QSFP28 ZR4 BIDI 80km Optic Transceiver Module

The SULITON fiber optic sfp 100g provides an excellent solution for high reliability, lower power consumption and excellent EMI performance allow system design with high port density. This product is RoHS compliant and is designed and tested in accordance with industry safety standards. The transceiver is Class I Laser product per U.S. FDA/CDRH and international IEC-60825 standards.

Specification of SULITON100Gb/s QSFP28 ZR4 BIDI 80km

Optic Transceiver Module
