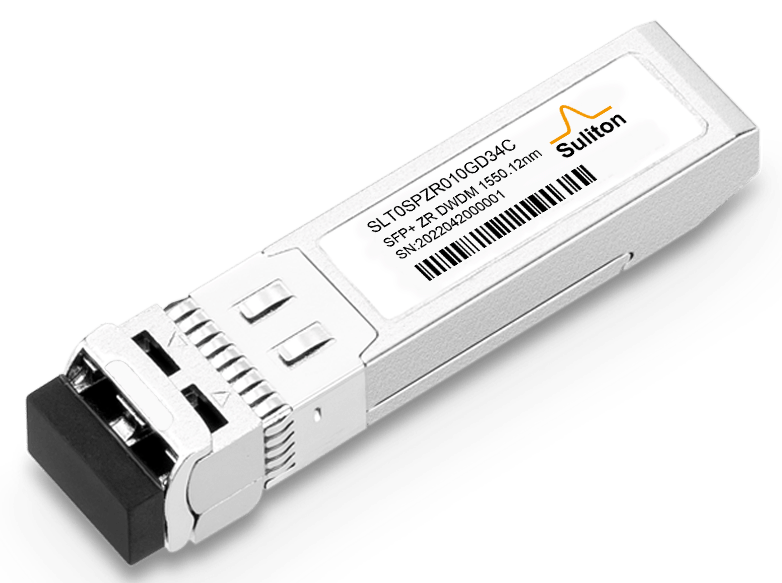

10Gb/s SFP+ DWDM Tunable ZR 80km Transceiver Multi Vendor Compatible
Features
- Up to 11.3Gb/s data links
- Monolithically integrated full C-band tunable transmitter and APD receiver
- 50 GHz ITU channel spacing with integrated wavelength locker
- Up to 80km on 9/125µm SMF
- Smart Features: Self-Negotiation, Remote DDM, Remote WL Locking
- Hot-pluggable SFP+ footprint
- Duplex LC/UPC type pluggable optical interface
- RoHS-10 compliant and lead-free
- Support Digital Monitoring interface
- Single +3.3V power supply
- Compliant with SFF+MSA and SFF-8472
SFF-8431, SFF-8690 and G.698.1
- Metal enclosure, for lower EMI
- Case operating temperature
Commercial: 0 ~ +70℃
Extended: -10 ~ +85℃
Industrial: -40 ~ +85℃
Applications
- DWDM 10GBASE-ZR/ZW & 10G Ethernet
- 10G CPRI, eCPRI
- DWDM CSTM-64
Introduction to SULITON 10Gb/s SFP+ DWDM Tunable ZR 80km Transceiver
Part No. SLT0SPZR010GDTLx
The Suliton 10Gb/s DWDM SFP+ Tunable ZR 80km Transceiver is an enhanced SFP+ Bi-directional fiber optic transceiver with one LC connector supporting transmission at 10 Gb/s over 10 kilometers of single mode fiber. The spf module is compliant with IEEE 802.3ae 10GBASE-LR standard. Digital diagnostics monitoring (DOM) functionality (alarm and warning features) is integrated into the design via an I2C serial interface per the Multi-Source Agreement (MSA) SFF-8472.
Advantage of SULTION 10Gb/s SFP+ DWDM Tunable ZR 80km Transceiver
The Suliton 10Gb/s DWDM ZR SFP plus provides an excellent solution for high reliability, lower power consumption and excellent EMI performance allow system design with high port density. This product is RoHS compliant and is designed and tested in accordance with industry safety standards. The transceiver is Class I Laser product per U.S. FDA/CDRH and international IEC-60825 standards.
Specification of Suliton 10Gb/s SFP+ DWDM Tunable ZR 80km Transceiver
Part Number | SLT0SPZR010GDTLx | Wavelength | DWDM |
Product Type | SFP+ DWDM Tunbale ZR | Receiver Type | APD |
Form Factor | SFP+ | TX Power | 0~5dBm |
Connector | LC | Extinction Ratio | >8.2dB |
Max Data Rate | 10.3125Gbps | RX Sensitivity | <-23dBm |
Link Distance | 80km | Overload Sensitivity | -8dBm |
Fiber Type | SMF | Power Budget | 23dB |
Transmitter Type | DFB | Power Consumption | 2.8W |
Operating Case Temperature | -40~85C | DDM/DOM | Supported |
Please click here to DOWNLOAD PDF DATASHEET
For more options please click here
Please feel free to contact us via: forrest.xiao@suliton.com if you need more details.
