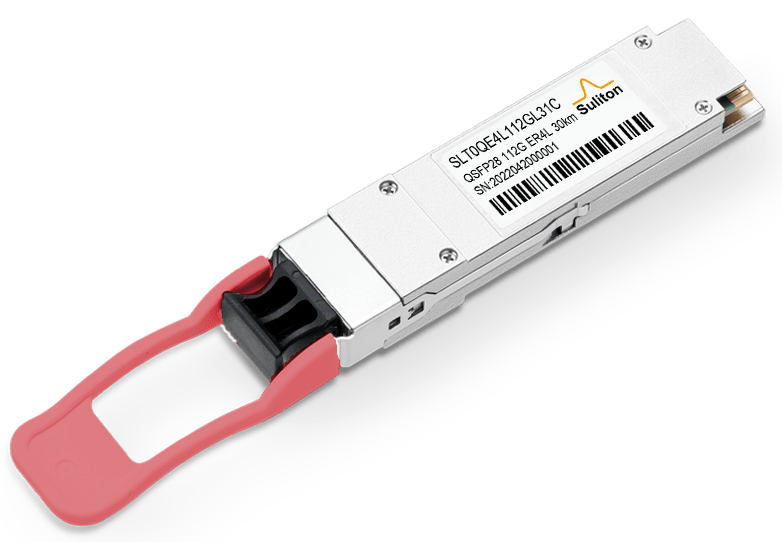

112Gb/s QSFP28 ER4 Lite 30km Optical Transceiver Module

Features

4 channels full-duplex transceiver modules
Transmission data rate up to 28.05Gbps per channel
Built-in 4-channel Clock and Data Recovery (CDR) in TX and RX
4-lane DFB and 4-lane APD
Up to 40km reach for G.652 SMF
Hot pluggable 38 pin electrical interface
QSFP28 MSA compliant
Duplex LC optical receptacle
RoHS-10 compliant and lead-free
Excellent EMI performance
Single +3.3V power supply
Maximum power consumption 4.5W
Operating case temperature 0°C to +70°C

Applications

100GBASE-ER4 Ethernet
Telecom networking
100G OTU4

112Gb/s QSFP28 ER4 Lite 30km Optical Transceiver Module

Part No. SLT0QE4L112LT31x QSFP28 ER4 Lite 112G

The small form factor pluggable module 112g is an enhanced QSFP28 fiber optic transceiver with dual LC connector supporting transmission at 100/112 Gb/s over 40 kilometers of single mode fiber. The transceiver is compliant with IEEE 802.3bm 100GBASE-ER4 Lite and OTU-4 standard. Digital diagnostics monitoring (DOM) functionality (alarm and warning features) is integrated into the design via an I2C serial interface per the Multi-Source Agreement (MSA) SFF-8636.

112Gb/s QSFP28 ER4 Lite 30km Optical Transceiver Module

The small form factor pluggable module 112g provides an excellent solution for high reliability, lower power consumption and excellent EMI performance allow system design with high port density. This product is RoHS compliant and is designed and tested in accordance with industry safety standards. The transceiver is Class I Laser product per U.S. FDA/CDRH and international IEC-60825 standards.

Specification

Part Number	SLT0QE4L112GL31x	Wavelength	1295.56, 1300.05, 1304.58, 1309.14
Product Type	QSFP28 ER4 Lite	Receiver Type	APD
Form Factor	QSFP28	TX Power	-2.9~4.5dBm
Connector	LC	Extinction Ratio	>4dB
Max Data Rate	112Gbps	RX Sensitivity	<-17.65dBm (5E-5)
Link Distance	40km	Overload Sensitivity	-4.9dBm
Fiber Type	SMF	Power Budget	14.75dB
Transmitter Type	DML	Power Consumption	4.5W
Operating Case Temperature	-40~85C	DDM/DOM	Supported
