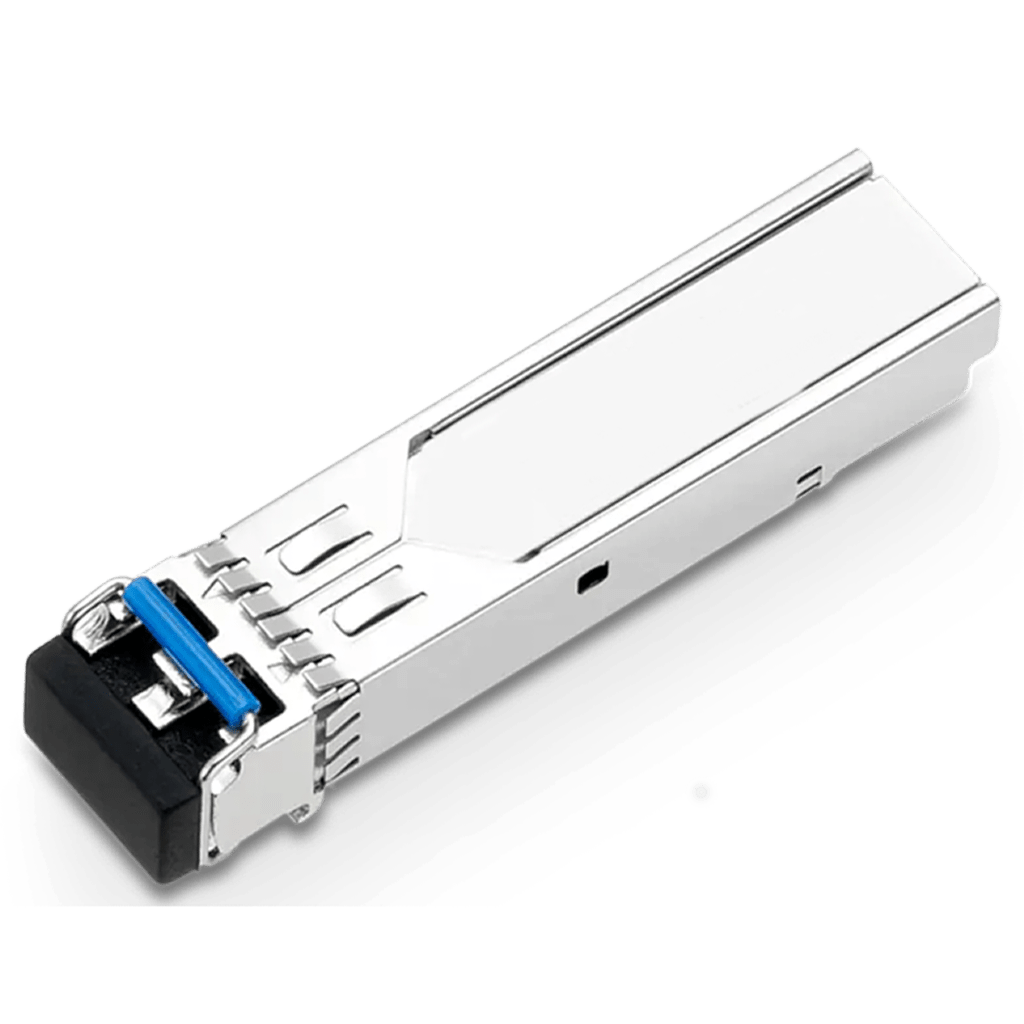

SFP 1000BASE-LX SMF 1310nm 20km DDM Transceiver Module Cisco GLC-TE Compatible

Features

  • Up to 1.25 Gb/s data links
  • Hot-pluggable SFP footprint
  • Built-in digital diagnostic functions
  • 1310nm FP laser transmitter
  • Duplex LC connector
  • Up to 20km 9/125um SMF
  • Metal enclosure, for lower EMI
  • Single 3.3V power supply
  • <800mW power dissipation
  • Operating case temp

Commercial: 0°C to +70 °C

Industrial: -40 ~ +85 °C

  • RoHS compliant

 Applications

  • 1.25 Gb/s 1000Base-LX Ethernet
  • 1.063 Gb/s Fiber Channel
Category:

Introduction to Cisco GLC-TE Compatible SFP 1000BASE-LX SMF 1310nm 20km DDM Transceiver Module

Part No. SLT0SPLX001GT31x

SULITON sfp modules 1.25G is an enhanced SFP fiber optic transceiver with dual LC connector supporting transmission at 1.25 Gb/s up to 20 kilometers of single mode fiber. The transceiver is compliant with IEEE 802.3ab 1000BASE-LX standard. Digital diagnostics monitoring (DOM) functionality (alarm and warning features) is integrated into the design via an I2C serial interface per the Multi-Source Agreement (MSA) SFF-8472.

Advantage of  SULITON SFP 1000BASE-LX SMF 1310nm 20km DDM Transceiver Module

SULITON 1.25G SFP provides an excellent solution for high reliability, lower power consumption and excellent EMI performance allow system design with high port density. This product is RoHS compliant and is designed and tested in accordance with industry safety standards. The transceiver is Class I Laser product per U.S. FDA/CDRH and international IEC-60825 standards.

Specification of SULITON  SFP1000BASE-LX SMF 1310nm 20km DDM Transceiver Module

Part Number

SLT0SPLX001GT31x

Wavelength

1310nm

Product Type

SFP LX

Receiver Type

PIN

Form Factor

SFP

TX Power

-9~-3dBm

Connector

LC

Extinction Ratio

>9dB

Max Data Rate

1.25Gbps

RX Sensitivity

<-22dBm

Link Distance

20km

Overload Sensitivity

1dBm

Fiber Type

SMF

Power Budget

13dB

Transmitter Type

DFB

Power Consumption

0.8W

Operating Case Temperature

-40~85C

DDM/DOM

Supported
