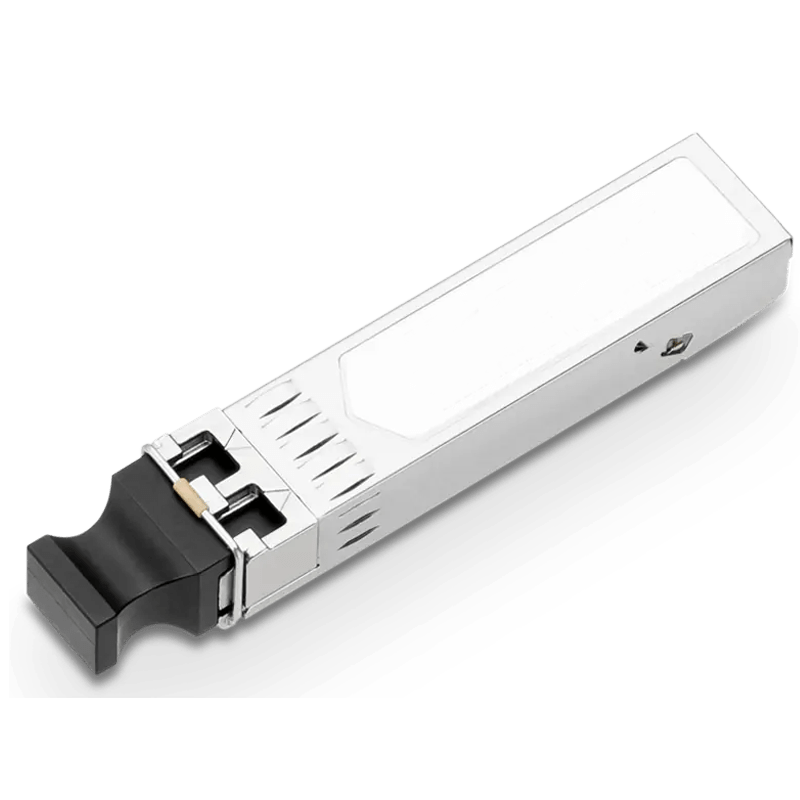

1000BASE-SX 850nm 550m DOM Duplex LC/UPC MMF Optical Transceiver ModuleCisco GLC-TE Compatible
Features
- Up to 1.25 Gb/s data links
- Hot pluggable SFP Footprint
- Digital Diagnostic (DDMI) functions
- Duplex LC connector
- Transmission distance up to 550m
- +3.3V single power supply
- Low power consumption
- Operating case temp
Commercial: 0°C to +70 °C
- RoHS compliant
- Password protection for A0h and A2h
Applications
- 1.25Gb/s 1000Base-SX Ethernet
Cisco GLC-TE Compatible 1000BASE-SX 850nm 550m DOM Duplex LC/UPC MMF Optical Transceiver Module
Part No. SLT0SPSX001GT85x
The SFP Modules 1.25G is an enhanced SFP SX Transceiver Module, with dual LC connector, supporting transmission at 1.25 Gb/s up to 550m, over OM3 multimode fiber (MMF) cable using a wavelength of 850nm. The transceiver is compliant with IEEE 802.3ab 1000BASE-SX standard. Digital diagnostics monitoring (DOM) functionality (alarm and warning features) is integrated into the design via an I2C serial interface per the Multi-Source Agreement (MSA) SFF-8472
The SFP 1000BASE-SX 850nm provides an excellent solution for high reliability, lower power consumption and excellent EMI performance allow system design with high port density. This product is RoHS compliant and is designed and tested in accordance with industry safety standards. The transceiver is Class I Laser product per U.S. FDA/CDRH and international IEC-60825 standards.
Specifications of SULITON 1000BASE-SX 850nm 550m DOM Duplex LC/UPC MMF
Optical Transceiver Module
Part Number | SLT0SPSX001GT85x | Wavelength | 850nm |
Product Type | SFP SX | Receiver Type | PIN |
Form Factor | SFP | TX Power | -10~-1dBm |
Connector | LC | Extinction Ratio | >9dB |
Max Data Rate | 1.25Gbps | RX Sensitivity | <-18dBm |
Link Distance | 550m | Overload Sensitivity | -3dBm |
Fiber Type | MMF | Power Budget | 8dB |
Transmitter Type | VCSEL | Power Consumption | 0.5W |
Operating Case Temperature | -40~85C | DDM/DOM | Supported |
