16GFC SFP SR 300m 850nm Transceiver Module Multi Vendor Compatible
Features
- Support 16G Fiber Channel application
- Compliant to SFP+ Electrical MSA SFF-8431
- Compliant to SFP+ Mechanical MSA SFF-8432
- Supports 14.025Gb/s bit rate
- Transmission distance up to 100m (OM4)
- +3.3V single power supply
- Low power consumption
- Operating case temp
Commercial: 0°C to +70 °C
Industrial: -40 ~ +85 °C
- RoHS compliant
Applications
- Fiber channel
- Other optical links;

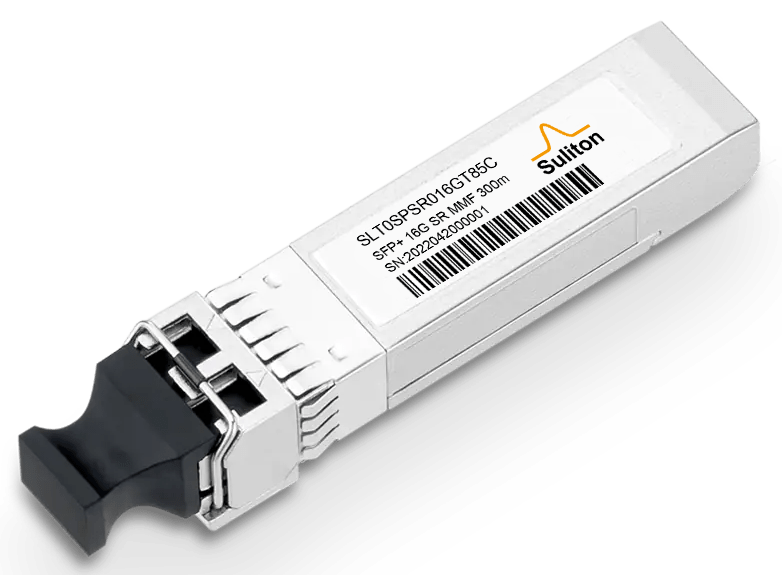

Introduction to SULITON 16GFC SFP SR 300m 850nm Transceiver Module
Part No. SLT0SPSR016GT85x SFP+ SR 16G
SULITON 16GFC SFP SR module is an enhanced SFP+ fiber optic transceiver with dual LC connector supporting transmission at 14.025 Gb/s up to 100m over OM3 multimode fiber (MMF) using a wavelength of 850nm. The transceiver is compliant with 4G/8G/16G Fiber Channel standard. Digital diagnostics monitoring (DOM) functionality (alarm and warning features) is integrated into the design via an I2C serial interface per the Multi-Source Agreement (MSA) SFF-8472.
Advantage of SULITON 16GFC SFP SR 300m 850nm Transceiver Module
SULITON 16GFC SFP provides an excellent solution for high reliability, lower power consumption and excellent EMI performance allow system design with high port density. This product is RoHS compliant and is designed and tested in accordance with industry safety standards. The transceiver is Class I Laser product per U.S. FDA/CDRH and international IEC-60825 standards.
Specification of SULITON 16GFC SFP SR 300m 850nm Transceiver Module
Part Number | SLT0SPSR016GT85x | Wavelength | 850nm |
Product Type | 16GFC SFP+ SR | Receiver Type | PIN |
Form Factor | SFP+ | TX Power | -5~2.4dBm |
Connector | LC | Extinction Ratio | >2.5dB |
Max Data Rate | 14.025Gbps | RX Sensitivity | <-10.5dBm |
Link Distance | 100m | Overload Sensitivity | 2dBm |
Fiber Type | MMF | Power Budget | 5.5dB |
Transmitter Type | VCSEL | Power Consumption | 1W |
Operating Case Temperature | -40~85C | DDM/DOM | Supported |
