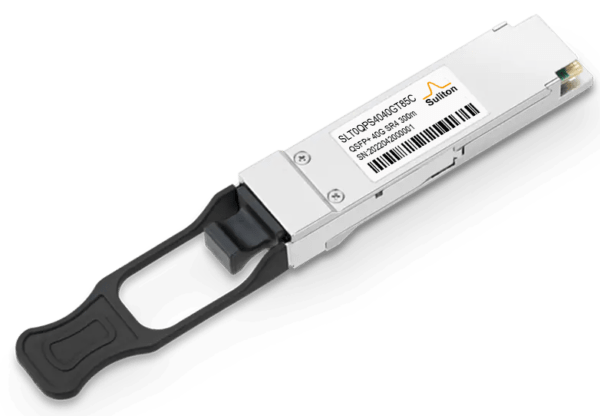

40Gb/s QSFP+ SR4 100m 850nm Fiber Optics Transceiver
Features
- Compliant to QSFP+ Electrical MSA SFF-8436
- Multi rate of up to 10.3125Gbps per lane
- Transmission distance up to 300m (OM3)
- +3.3V single power supply
- Low power consumption
- Operating case temp
Commercial: 0°C to +70 °C
- RoHS compliant
Applications
- InfiniBand QDR
- 40GBASE-SR4 40G Ethernet
- Other optical links
Introduction to SULITON 40Gb/s QSFP+ SR4 100m 850nm Fiber Optics
Part No. SLT0QPS4040GT85C QSFP28 SR4 40G
The SULITON Transceiver module 40G is an enhanced QSFP28 fiber optic transceiver supporting transmission at 40 Gb/s up to 150m over OM4 multimode fiber (MMF) using a wavelength of 850nm via MTP/MPO-12 connector. The transceiver is compliant with IEEE 802.3bm 40GBASE-SR4 standard. Digital diagnostics monitoring (DOM) functionality (alarm and warning features) is integrated into the design via an I2C serial interface per the Multi-Source Agreement (MSA) SFF-8636.
Advantage of SULITON 40Gb/s QSFP+ SR4 100m 850nm Fiber Optics
The SFP Transceiver 40G provides an excellent solution for high reliability, lower power consumption and excellent EMI performance allow system design with high port density. This product is RoHS compliant and is designed and tested in accordance with industry safety standards. The transceiver is Class I Laser product per U.S. FDA/CDRH and international IEC-60825 standards.
Specification of SULITON 40Gb/s QSFP+ SR4 100m 850nm Fiber Optics
Part Number | SLT0QPS4040GT85C | Wavelength | 850nm |
Product Type | QSFP+ SR4 | Receiver Type | PIN |
Form Factor | QSFP+ | TX Power | -6~2.4dBm |
Connector | MPO | Extinction Ratio | >3dB |
Max Data Rate | 40Gbps | RX Sensitivity | <-10.3dBm |
Link Distance | 100m | Overload Sensitivity | 2.4dBm |
Fiber Type | MMF | Power Budget | 4.3dB |
Transmitter Type | VCSEL | Power Consumption | 1.5W |
Operating Case Temperature | 0~70C | DDM/DOM | Supported |
Please click here to DOWNLOAD PDF DATASHEET
For more options please click here.
Please feel free to contact us via: forrest.xiao@suliton.com if you need more details.
